The hardware Details


For A Version of This Page With Small Graphics Click Here (Each Graphic on the small version is approx 10k).

The Vendors on this page - HP, NEC, Compaq, Casio, Philips, LG, Hitachi

I have compiled all of this information from either Vendor's press-releases or their data sheet's / web sites. If I have made any mistakes here, then please email me. Most of software that comes on these units is part of the windows ce release, These are covered here, any vendors that are giving away extra software is not necessarily covered here. It's a moving target.

Chris De Herrera has put together a rather nice Windows CE Comparison chart, it covers things like processor speeds etc. it prints / views nicely on a single page.

Basic Software Included with these units.

Microsoft Pocket Word, Excel, Internet Explorer, In-box for Email, Address Book, Calendar, TO-DO List, World Clock, Solitaire. From what I've seen.All except Internet Explorer are in the ROM.

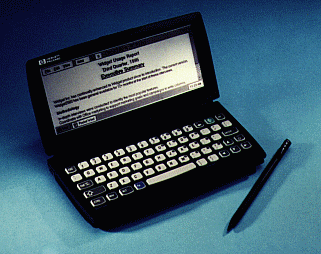

Hewlett Packard

Model Name 300LX / 320LX
CPU Hitatchi SH3 running at 44 MHz
Memory Standard (2-MB RAM) / Enhanced (Backlit, 4-MB RAM, CompactFlash Card Slot)
Display 640 x 240 LCD Touch Screen, Backlit on Enhanced Models
Size / Weight  18.3 x 9.4 x 2.9 cm (7.2 x 3.67 x 1.1 in) / 442 g (15.6 oz) with batteries
Power 2 x AA Main Batteries (rechargeable NiCad optional)
Communication
Ports Serial, IrDA, PCMCIA Type II Card Slot, Compact Flash on Some Models
Options Optional AC Adapter HP CompactFlash Memory, 2-MB & adapter for PC Card Slot, 4-MB & adapter for PC Card Slot, HP AC Adapter, HP Docking Cradle (included with enhanced model), PC Synchronization Cable (included with both models), HP Leather Case, Spare Pens
Special Notes All Information was taken from preliminary Product Specification sheet, and as it states information is subject to change.

With HP's History in Palmtops's This should be the best Windows CE machine

Additional Software Included Free - Information Explorer version 1.1 (desktop PC software for connecting HP Palmtop PC to PC) HP 100/200LX & HP OmniGo 100/120 translation software (for appointment book and phone book) FREE Trial software from many software vendors included on CD-ROM.

Docking cradle (for added convenience in connectivity, included with enhanced model only).
Shipping NO
Other Links http://www.hp.com/handheld

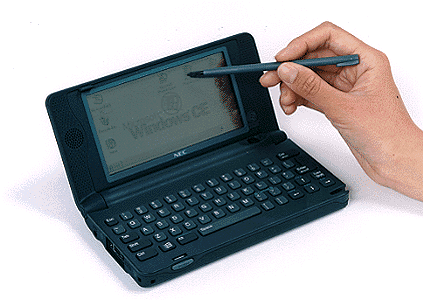

NEC
Model Names NEC Mobile Pro 200/400
CPU NEC VR 4101
Memory 200 = 2Mb 400=4Mb RAM / 8MB ROM
Display 480 x 240 LCD Touch Screen
Size / Weight 6.89 x 3.74 x 1.03 inches / 0.8lb
Power 2 AA Alkaline
Communication
Ports Serial, IrDA standard interface, PCMCIA type II
Options Depending on Model AC Adapter, Cradle, NiMH Battery and Charger

NimH Battery, Modem Cable
Special Notes The Mobile Pro 400 comes with the AC Adapter, Docking Cradle
Shipping YES
Other Links  http://www.nec.co.jp/english/today/newsrel/9611/1801.html

http://www.nec.co.jp/english/today/newsrel/9611/1801-01.html

http://www.nec.com/company/RecentPR/961118ee.html




Compaq

Model Names PC Companion C120 / C140
CPU Hitatchi SH3 / Running at 40Mhz
Memory 2Mb or 4mb (Expandable to 4Mb or 6Mb)
Display 480 x 240 backlit touch sensitive LCD
Size / Weight 6.8 x 3.6 x 1 inches / 13.4oz
Power 2 AA Alkaline
Communication
Ports Serial, IrDA
Options 2Mb Memory Expansion, 10Mb Flash RAM, 14.4 LP PC Card Modem

Combo Pack (Includes AC Adapter and Quick Connect which provides serial, AC Adapter, and battery charger ports)

Power Pack (Includes Quick Connect, AC Adapter, NiMH battery pack, battery charger)

Convenience Cradle, Slipcase, Carrying Case, Stylus 3 pack
Special Notes Same as the Casio unit in terms of hardware.
Shipping YES also I Understand options are readily available as well
Other Links   http://www.compaq.com

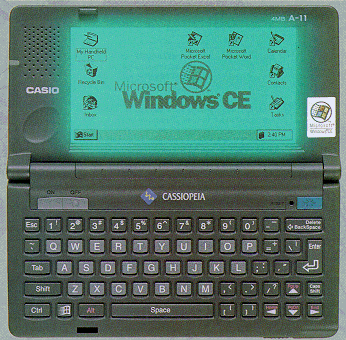

Casio

Model Names Cassoipeia A-10/A-11
CPU Hitatchi SH3 / Running at 40Mhz
Memory 2Mb or 4mb (Expandable to 4Mb or 6Mb) 4MB ROM
Display 480 x 240 backlit touch sensitive LCD
Size / Weight 6.8 x 3.6 x 1 inches / 13.4oz
Power 2 AA Alkaline
Communication
Ports Serial, IrDA, PCMCIA type II
Options UT-S11 - Includes AC Adapter, rechargeable battery pack, charger and CR-A10 (Docking Cradle)

AC-S10 AC Set - Makes it possible to use the RS232C Cable amd AC/Adapter or Charger at the same time

SB-62 Data Communication Cable - Used to connect to a digital camera
Special Notes
Shipping YES also I Understand options are readily available as well
Other Links   http://www.casiohpc.com

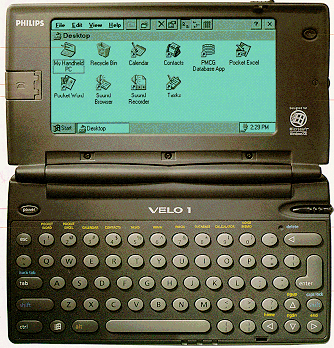

Philips
Model Name VELO -1
CPU MIPS R3910
Memory 2Mb / 4MB / 8MB ROM
Display 480 x 240 backlit touch sensitive LCD
Size / Weight 6.8 x 3.7 x 1 / 13.2 ounces
Power 2 AA Alkaline
Communication V32 Bis, 19.2kbps Modem
Ports Serial, IrDA, Two Mini Cards ** PCMCIA Type II only by using V-Module Cradle
Options 2mb / 4Mb DRAM Minitature Cards, 2MB / 4MB Flash memory Miniature cards, Type II PCMCIA Card V-Module, extra Velo Dock, Travelling Cable, Travelling AC Adapter, Rechargeable NiMH battery pack and Velo-1 Carrying Case
Special Notes I assume these units come with the AC-Adapter and Docking Station ANYONE KNOW

These units have a voice memo application

Shipping Yes (USA)

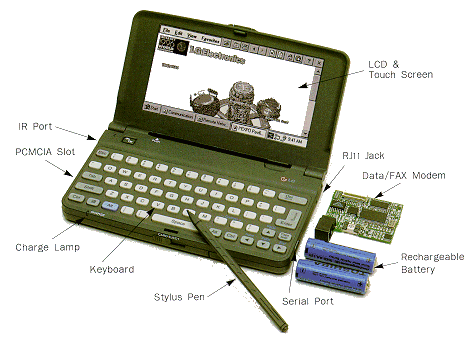

LG / Goldstar
Model Name GP40M
CPU Hitatchi SH3
Memory 2Mb/4Mb RAM / 4MB ROM
Display 480x 240 touch screen lcd
Size / Weight 6.45 x 1 x 3.76 / 0.71lbs
Power Rechargeable NiMH 2 x AA (1.2v/1200mA) or 2 x AA Alkaline
Communication
Ports Serial, IrDA, PCMCIA Type II
Options FAX ./ Modem Module (Not pcmcia Card) 28.8kbps, AC Adapter See Note Below
Special Notes Data Sheet I have is from Comdex, so the information about options and whether or not a Docking Cradle / AC Adapter come in the box is unknown to me at this time, I'll try and find out, if anyone at LG wants to give me the information then email me.
Shipping NO
Other Links http://www.lge.co.kr/

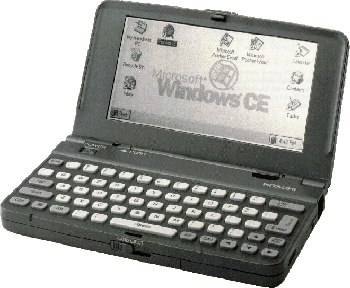

Hitachi
Model Name Unknown
CPU Hitatchi SH3
Memory 2Mb/4Mb RAM / 4MB ROM
Display 480x 240 touch screen lcd
Size / Weight 168mm x 25.8mm x 98mm (6 5/8" (w) x 1" (h) x 3-7/8"(d) / 12.3oz (350g) including batteries
Power Rechargeable NiMH 2 x AA (included) or 2 x AA Alkaline
Communication
Ports Serial, IrDA, PCMCIA Type II
Options FAX ./ Modem Module (Not pcmcia Card) 14.4kbps, AC Adapter See Note Below
Special Notes According to the Data Sheet I have it says AC Adaptor Included, No Reference is made to a docking Cradle?.
Shipping NO

Page Published on 11th February 1997
